(Originally published by Lawrence Berkeley Laboratory)
November 3, 2014
If you can uniformly break the symmetry of nanorod pairs in a colloidal solution, you’re a step ahead of the game toward achieving new and exciting metamaterial properties. But traditional thermodynamic -driven colloidal assembly of these metamaterials, which are materials defined by their non-naturally-occurring properties, often result in structures with high degree of symmetries in the bulk material. In this case, the energy requirement does not allow the structure to break its symmetry.
In a study led by Xiang Zhang, director of Berkeley Lab’s Materials Sciences Division, he and his research group at the University of California (UC) Berkeley achieved symmetry-breaking in a bulk metamaterial solution for the first time. Zhang, who is also a member of the Kavli Energy NanoScience Institute (ENSI), and his group demonstrated self-assembled optical metamaterials with tailored broken-symmetries and hence unique electromagnetic responses that can be achieved via their new method. The results have been published in Nature Nanotechnology. The paper is titled “Feedback-driven self-assembly of symmetry-breaking optical metamaterials in solution.”
“We developed an innovative self-assembly route which could surpass the conventional thermodynamic limit in chemical synthetic systems” explains Sui Yang, lead author of the Nature Nanotechnology paper and member of Zhang’s research group. “Specifically, we use the material’s own property as a self-correction feedback mechanism to self-determine the final structure.”
This led the group to produce nanostructures that have historically been considered impossible to assemble.
The widely used method of metamaterial synthesis is top-down fabrication such as electron beam or focus ion beam lithography that often results in strongly anisotropic and small-scale metamaterials.
“People build metamaterials using top-down methods that include light exposure and electron beam exposure, which are inefficient and costly,” says Xingjie Ni, another lead author on the paper. “If we want to use metamaterials, we need to develop a way to build them cheaply and efficiently.”
The bottom-up route fills these requirements. Starting with a solution of colloidal nanorods, Yang and Ni built on the common self-assembly technique used to build nanoparticles. The twist that they added was to introduce a feedback mechanism by which to obtain the desired product.
The desired product when synthesizing colloidal gold nanorods, which are stabilized during growth to obtain preferential bonding along longitudinal facets, is pairs of rods, or dimers, that are shifted by a certain amount: their symmetry is uniformly broken.
“When you have this reaction, you get all kinds of products. You have a pair of nanorods with no shift at all relative to one another; or a pair that are shifted too much; or not enough. This is a typical process and is governed by thermodynamics,” explains Yang.

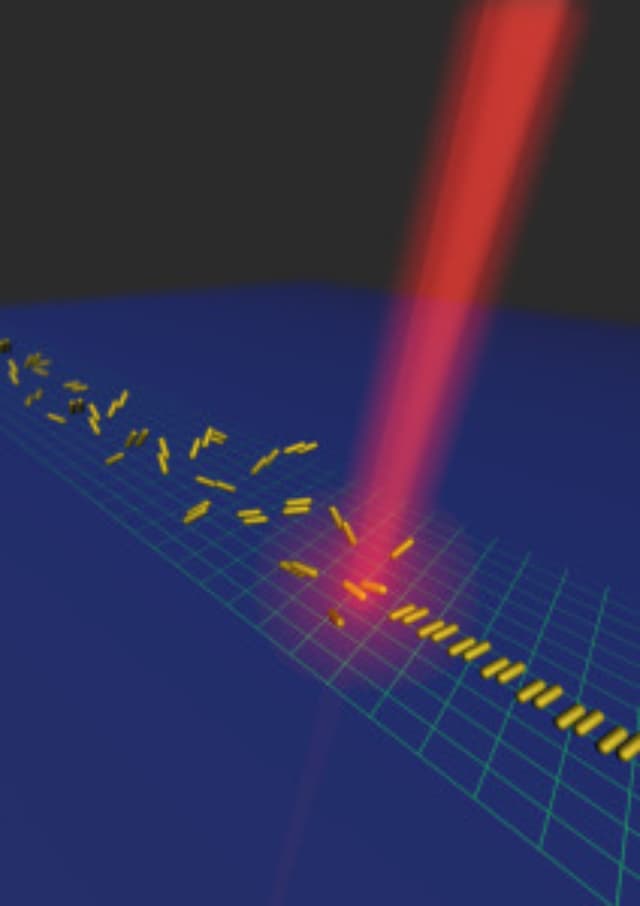

The team used a laser to excite the plasmonic resonance of specific particles produced in the reaction. This allowed them to separate out the un-desired resonances, indicating nanorod pairs that are not shifted the desired amount, and dissociate those pairs using heat from the excitation.
“Only the desired resonance survives in this process,” Ni says. “Then the reaction can be repeated to produce more of the desired, broken-symmetry particles based on their plasmonic signature. Clear distinction in resonance profiles makes this a highly selective method.
“This is a brand new self-assembly fabrication method that people can commonly employ: we use the material’s own properties to drive nanostructure formation in solution. This has the intrinsic value of making many structures in one batch.”
The method developed in Zhang’s research group can be applied to many other nanoparticles; indeed, almost any structure that can self-assemble could be produced in this way. This solves the problem of achieving large scale symmetric breaking, and can open the door to new properties and applications.
The unique feedback mechanism leads to precisely controlled nanostructures with beyond conventional symmetries and functionalities.
“As a demonstration in our paper, we have synthesized a new class of symmetry-breaking optical metamaterials that have isotropic electromagnetic responses and can be used in a number of important applications, such as subwavelength imaging, optical cloaking and sensing,” says Yang.
“In contrast to the conventional wisdom that a material’s structure determines its properties, we provocatively suggest that the physical properties of materials, by design, may dictate the evolution of self-assembly and self-determine the structures of bulk materials.” concludes Zhang.
Other co-authors of the Nature Nanotechnology paper are Xiaobo Yin, Boubacar Kante, Peng Zhang, Jia Zhu and Yuan Wang.
This research was supported by the National Science Foundation (NSF), the NSF Material Worlds Network program, and the Molecular Foundry, a U.S. Department of Energy Office of Science nanoscience center hosted by Berkeley Lab.
